Products

From the crafting of premium materials into almost anything you can dream up, to cost-effective steel tray solutions that require no additional plywood substrate; our products are tailored to the specific design requirements of each project.

Our roofing range includes flat tray roof and cladding profiles that incorporate traditional hand seaming techniques, while our cladding offers superior flat panel cladding and façade systems.

We can create bespoke items such as curved fascias, feature doors, chimneys, louvres and internal paneling for high-quality points of difference. Everything we produce is either made from the premium copper, zinc, aluminium and steel we source and manufacture using state-of-the-art European CNC technology. We also supply quality European prefabricated products.

Please select a product range:

ROOF SLSS

TARC Single Lock

The taut and regular appearance of this profile emphasises the seam. It has a broader effect than the double-lock system, giving large surface areas a dynamic, striking appearance. Sharp lines, depth and shading make it especially suitable for cladding, and the visible areas of steep roofs.

MATERIAL AND FINISHED OPTIONS

Discover our wide range of options in:

  • Copper
  • Zinc
  • Aluminium
  • Steel
More Info

Technical specifications

Available in

Material Pre-painted Steel Aluminium coil-coated Zinc Copper
Thickness 0.55mm 0.7mm or 0.8mm 0.7mm 0.7mm
Panel length Please consult us at design stage >15m Please consult us at design stage >10m Please consult us at design stage >10m Please consult us at design stage >12
Seam height 25mm / 38mm 25mm / 38mm 25mm / 38mm 25mm / 38mm
Panel width 305-600mm
Standard width 515mm
305-555mm
Standard width 515mm
305-600mm
Standard width 505mm and 405mm
305-600mm
Standard width 505mm and 405mm
Directions Vertical/Horizontal Vertical/Horizontal Vertical/Horizontal Vertical/Horizontal
Minimum Pitch 3.0 degrees* 3.0 degrees* 3.0 degrees* 3.0 degrees*
 * Pitch < 7 degrees is subject to location and design, please contact us for further information.

System build up

Roof structure Must consist of continuous trusses or top hats at max. 600mm spacing.
Direct support

Standard - Plywood 15mm structural to AS/NZS 2269

Non-flammable - MgO board min. 15mm

Underlay Fully breathable and waterproofed underlay
Fixings Fixed and sliding TARC approved Single Lock brackets at max. 400mm centres. Clips to be min. 0.4mm stainless steel



Fully designed build up system

Fully supported roofing system including plywood, membrane, metal and fixings, complete with all flashings, trims and waterproofed details meeting adjoining building materials.

Warranty

Min. 10 years warranty covering material, min. 5 years on workmanship

Extended warranties available on request

Materials TARC Single Lock is available in materials and colours as above
Manufacture All components of the TARC Single Lock system are manufactured by TARC in one of our manufacturing facilities. Trays over 8m length are typically roll-formed on site



ROOF DoubleLockStandingSeam

TARC Double Lock

Suitable for low-pitched roofs down to 3 degrees, this is an ideal profile for harsh climates where snowfall, strong winds and heavy rains are a consideration. Allows straight or curved, radial or arched design flexibility. High upstand provides elegant depth and shading. It is uniquely designed to account for thermal movement.

MATERIAL OPTIONS

Discover our wide range of material and finish options in:

  • Copper
  • Zinc
  • Aluminium
More Info

TECHNICAL SPECIFICATIONS

AVAILABLE IN

Material Aluminium coil-coated Zinc Copper
Thickness 0.7mm or 0.8mm 0.7mm  0.6mm
Panel length Please consult us at design stage >10m Please consult us at design stage >10m Please consult us at design stage >12
Seam height 25mm / 38mm 25mm / 38mm 25mm / 38mm
Panel width 305-555mm
Standard width 515mm
305-600mm
Standard width 505mm and 405mm.
305-600mm
Standard width 505mm and 405mm
Directions Vertical Vertical Vertical
Minimum Pitch 3.0 degrees* 3.0 degrees* 3.0 degrees*
* Pitch < 7 degrees is subject to location and design, please contact us for further information.



SYSTEM BUILD UP

Roof structure Must consist of continuous trussers or top hats at max. 600mm spacing
Direct support

Standard - Plywood 15mm structural to AS/NZS 2269

Non-flammable - MgO board min. 15mm

Underlay Fully breathable and waterproofed underlay
Fixings Fixed and sliding TARC approved Single Lock brackets at max. 400mm centres. Clips to be min. 0.4mm stainless steel



FULLY DESIGNED BUILD UP SYSTEM

Fully supported roofing system including plywood, membrane, metal and fixings, complete with all flashings, trims and waterproofed details meeting adjoining building materials.

Warranty

Min. 10 years warranty covering material, min. 5 years on workmanship

Extended warranties available on request

Materials TARC Single Lock is available in materials and colours as above
Manufacture All components of the TARC Single Lock system are manufactured by TARC in one of our manufacturing facilities. Trays over 8m length are typically roll-formed on site



ROOF BattenSeam

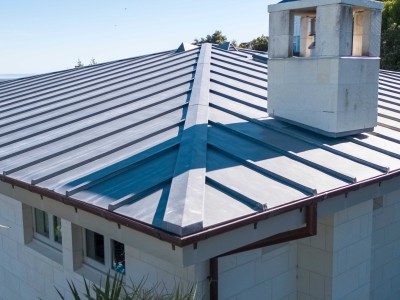

TARC Batten Seam

Similar to the TARC Batten Cap but with a hand-seamed finish, the dramatic lines of TARC Batten Seam produce depth and shading, but with a significantly more open, handcrafted appearance. TARC Batten Seam is ideal for concave or convex roof structures. Both cap profiles can be used in combination with the standing seam for greater variation.

MATERIAL OPTIONS

Discover our wide range of material and finish options in:

  • Copper
  • Zinc
  • Aluminium
  • Steel
More Info

TECHNICAL SPECIFICATIONS

AVAILABLE IN

Material Pre-painted Steel Aluminium coil-coated Zinc Copper
Thickness 0.55 0.7mm or 0.8mm 0.7mm 0.7mm
Panel length Please consult us at design stage >15m Please consult us at design stage >10m Please consult us at design stage >10m Please consult us at design stage >12m
Seam height 38mm 38mm 38mm 38mm
Panel width 305-535mm
Standard width 535mm
305-535mm
Standard width 425mm and 535mm
305-600mm
Standard width 430mm and 535mm
305-606mm
Standard width 535mm and 606mm
Directions Vertical Vertical Vertical Vertical
Minimum Pitch 3.0 degrees* 3.0 degrees* 3.0 degrees* 3.0 degrees*
* Pitch < 7 degrees is subject to location and design, please contact us for further information.



SYSTEM BUILD UP

Roof structure Must consist of continuous trussers or top hats at max. 600mm spacing
Direct support

Standard - Plywood 15mm structural to AS/NZS 2269

Non-flammable - MgO board min. 15mm

Underlay Fully breathable and waterproofed underlay
Fixings Fixed TARC Batten Seam brackets at max. 400mm centres. Clips to be min. 0.5mm stainless steel or 0.7mm galvanised steel



FULLY DESIGNED BUILD UP SYSTEM

Fully supported roofing system including plywood, membrane, metal and fixings, complete with all flashings, trims and waterproofed details meeting adjoining building materials.

Warranty

Min. 10 years warranty covering material, min. 5 years on workmanship

Extended warranties available on request

Materials TARC Batten Seam is available in materials and colours as above
Manufacture All components of the TARC Batten Seam system are manufactured by TARC in one of our manufacturing facilities. Trays over 8m length are typically roll-formed on site
ROOF StandingSeamSnaplock

TARC Snap Lock

This versatile profile adds interest, shadow and depth together with beautiful soft lines. Easy to install, no special tools are required, and it can be used with either a plywood backing or open purlin applications. Reduced structural requirements and reduced installation times make this system very cost effective.

FEATURES & BENEFITS

  • No solid sarking needed
  • Details and design solution are comparable to TARC Snap Lock
  • Cost effective installation with fully concealed brackets

MATERIAL OPTIONS

Discover our wide range of colour options:

  • Steel
More Info

TECHNICAL SPECIFICATIONS

AVAILABLE IN

Material Pre-painted Steel
Thickness 0.55
Panel length Please consult us at design stage >15m
Seam height 38mm
Panel width 305-600mm
Standard width 460mm
Directions Vertical
Minimum Pitch 3.0 degrees*
* Pitch < 7 degrees is subject to location and design, please contact us for further information.





SYSTEM BUILD UP

Substructure Must consist of continuous purlins or castelated cavity battens at max. 450mm spacing
Underlay Fully breathable and waterproofed underlay
Fixings TARC Snap Lock brackets at 450mm centres. Clips to be min. 0.4mm stainless steel



FULLY DESIGNED BUILD UP SYSTEM

Roofing system including underlay, metal trays and fixings. Complete with all flashings, trims and waterproofed details meeting adjoining building materials.

Warranty

Min. 10 years warranty covering material, min. 5 years on workmanship

Extended warranties available on request

Materials

TARC Snap Lock is available in pre-painted steel with colours as above

Manufacture All components of the TARC Snap Lock system are manufactured by TARC in one of our manufacturing facilities. Trays over 8m length are typically roll-formed on site



ROOF BattenCap

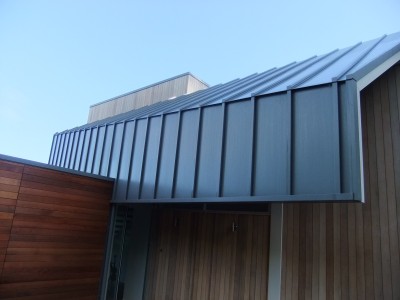

TARC Batten Cap

Bold contours give this profile its unique urban character. Its structured, longitudinal joints create light and shade variations as the angle of light changes. Easily dismantled for any roof penetrations, maintenance or repair.

FEATURES & BENEFITS

  • Incredible flexibility and versatility with TARC Batten Cap metal roofing
  • Unlimited design options with panel widths changeable to suit roof width and skylight penetrations; tapered. curved, convex and concave; crossjoints to create specific lines or continuous cladding for long panel applications
  • Fully waterproof with all details and panel connections made to leverage inherent material waterproofing
  • Economical due to minimal wastage of materials

MATERIAL OPTIONS

Discover our wide range of options in:

  • Copper
  • Zinc
  • Aluminium
  • Steel
More Info

TECHNICAL SPECIFICATIONS

AVAILABLE IN

Material Pre-painted Steel Aluminium coil-coated Zinc Copper
Thickness 0.55 0.7mm or 0.8mm 0.7mm 0.7mm
Panel length Please consult us at design stage >15m Please consult us at design stage >10m Please consult us at design stage >10m Please consult us at design stage >12m
Seam heigth 38mm 38mm 38mm 38mm
Panel width 305-535mm
Standard width 535mm
305-535mm
Standard width 425mm and 535mm
305-600mm
Standard width 430mm and 535mm
305-606mm
Standard width 535mm and 606mm
Directions Vertical Vertical Vertical Vertical
Minimum Pitch 3.0 degrees* 3.0 degrees* 3.0 degrees* 3.0 degrees*
* Pitch < 7 degrees is subject to location and design, please contact us for further information.





SYSTEM BUILD UP

Roof structure Must consist of continuous trussers or top hats at max. 600mm spacing
Direct support

Standard - Plywood 15mm structural to AS/NZS 2269

Non-flammable - MgO board min. 15mm

Underlay Fully breathable and waterproofed underlay
Fixings Fix TARC batten cap brackets at max. 400mm centres. Clips to be min. 0.4mm stainless steel or 0.7mm galvanised steel



FULLY DESIGNED BUILD UP SYSTEM

Fully supported roofing system including plywood, membrane, metal and fixings, complete with all flashings, trims and waterproofed details meeting adjoining building materials.

Warranty

Min. 15 years warranty covering material, min. 5 years on workmanship

Extended warranties available on request

Materials Battencap is available in materials and colours as above
Manufacture All components of the TARC Batten Cap system are manufactured by TARC in one of our manufacturing facilities. Trays over 8m length are typically roll-formed on site
WALL V25Interlock

TARC V25

Interlocking TARC V25 panel allows for a range of axial dimensions when designing facades. Panels can be installed horizontally, vertically or diagonally.

FEATURES & BENEFITS

  • Interlocking attachment with concealed fastening
  • In conjunction with an metal substructure a non flammable build up is possible
  • Versitale self supporting cladding system for non-ferrous metals

MATERIAL OPTIONS

Discover our wide range of material and finish options in:

  • Copper
  • Zinc
  • Aluminium
More Info

TECHNICAL SPECIFICATIONS

AVAILABLE IN

Material Aluminium coil-coated Zinc Copper
Thickness 1mm 1mm 1mm
Panel length max. 4000mm max. 4000mm max. 4000mm
Cassette depth 25mm 25mm 25mm
Panel width 100-300mm
Standard width 250mm and 300mm
100-300mm
Standard width 250mm and 300mm
100-300mm
Standard width 250mm and 300mm
Directions Vertical/Horizontal Vertical/Horizontal Vertical/Horizontal
Negative detail 8-20mm 8-20mm 8-20mm



SYSTEM BUILD UP

Substructure Must consist of continuous timber cavity battens or TARC aluminium top hats at max. 600mm spacing perpendicular to the Panel direction. The substructure layout has to be developed to suit the specific demands of the project
Cavity Drained and vented, minimum 20mm
Underlay For not vertical walls (60 - 90 degrees) a fully waterproof membrane  has to be installed behind the cavity
Fixings Self tapping stainless steel 18/8 screws Type SFS SN3/11 S 7504/K
4.8x19 or similar to fixed into TARC top hats
Self tapping stainless steel screws hex washer head screw 12Gx35mm to
fix to timber battens



FULLY DESIGNED BUILD UP SYSTEM

Rain screen wall cladding system including top hats, battens, metal panels and fixings, complete with all flashings, trims and details meeting adjoining building materials.

Warranty

Min. 10 years warranty covering material, min. 5 years on workmanship

Extended warranties available on request

Materials TARC V25 Interlocking panel is available in materials and colours as above
Manufacture All components of the TARC V25 Interlocking system are manufactured project specifically by TARC in one of our manufacturing facilities



WALL PE2Alu

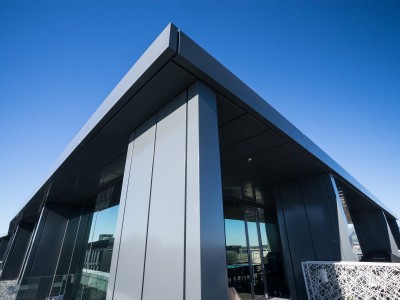

TARC Pe2

TARC Pe2 achieves complex architectural elements such as curves, arcs, edges or overhanging ceilings. Its flexibility adapts to design ideas, giving architects and designers the freedom to create a tailored rain screen.

FEATURES & BENEFITS

  • Unlimited design options with panel sizes customizable to suit wall penetrations; tapered panels, crossjoints to create specif‌ic lines and a large range of powder coat finishes
  • In conjunction with an metal substructure a non flammable build up is possible
  • Small environmental footprint due to minimal wastage of materials, local manufacturing and powder coating

MATERIAL OPTIONS

Discover our wide range of colour and finish options in:

  • Aluminium coil-coated
  • Aluminium powder-coated
More Info

TECHNICAL SPECIFICATIONS

AVAILABLE IN

Material Aluminium 5005 H34
Thickness 2mm
Panel length max. 3540mm
Cassette depth 28mm
Panel width 100-700mm
Directions Vertical/Horizontal
Negative detail 15-35mm



SYSTEM BUILD UP

Substructure Consists of continuous timber cavity battens or TARC aluminium top hats at max. 600mm spacing perpendicular to the panel direction. The substructure layout has to be developed to suit the specific demands of the project
Cavity Drained and vented, minimum 20mm
Underlay Synthetic underlay, if installed to timber substructure
Fixings Proprietary extruded aluminium bracket for hidden fixing to substructure



FULLY DESIGNED BUILD UP SYSTEM

Rain screen wall cladding system including TARC top hats or timber battens, Pe2 panels and fixings, complete with all flashings, trims and details meeting adjoining building materials.

Warranty

Min. 10 years warranty covering material, min. 5 years on workmanship

Extended warranties available on request

Materials TARC Pe2 panel is available in 2mm aluminium, colours and finishes as above
Manufacture All components of the TARC Pe2 panel system are manufactured project specifically by TARC in one of our manufacturing facilities
WALL Flatlock

TARC Flatlock

Aesthetically impressive, the TARC Flat Lock excels in large format facades. Panels can be fabricated in varying sizes to suit individual requirements and can be laid vertically or horizontally. A “stretcher bond” appearance can be created in either symmetrical or random patterns.

FEATURES & BENEFITS

  • Unlimited design options to structure large facades with small format metal cladding
  • Well suited to complex facades featuring curves, both convex and concave
  • A large variation of pre-manufactured panel types and sizes or custom made panels are available
  • Different join appearances are possible, all featuring a concealed bracket
  • Non-combustable build up is available

MATERIAL OPTIONS

Discover our wide range of material and finish options in:

  • Copper
  • Zinc
  • Aluminium
More Info

TECHNICAL SPECIFICATIONS

AVAILABLE IN

Material Aluminium coil-coated Zinc Copper
Thickness min 0.7mm min 0.7mm min 0.7mm
Panel length max. 4000mm max. 4000mm max. 4000mm
Panel width 100-350mm 100-350mm 100-350mm
Directions Vertical/Horizontal/Diagonal Vertical/Horizontal/Diagonal Vertical/Horizontal/Diagonal
Pre-Manufactured panels available Prefa

VM Zinc

ElZinc

Rheinzink

KME

Aurubis



SYSTEM BUILD UP

Direct support

Standard - Plywood 15mm structural to AS/NZS 2269

Non-flammable - MgO board min. 15mm

Cavity Minimum  20mm
Underlay Fully breathable and waterproof synthetic underlay
Fixings TARC approved Flatlock brackets. Clips to be min. 0.4mm stainless steel and maximum spacing at 350mm in every direction



FULLY DESIGNED BUILD UP SYSTEM

Fully supported cladding system including sarking, membrane, metal and fixings, complete with all flashings, trims and waterproofed details meeting adjoining building materials.

Warranty

Min. 10 years warranty covering material, min. 5 years on workmanship

Extended warranties available on request

Materials TARC Flatlock cladding is available in materials and colours as above
Manufacture

All components of the TARC Flatlock system are manufactured specifically by TARC in our manufacturing facility

For pre-made Flatlock panels all complementary components necessary, will be manufactured by TARC



Get in touch to find out more about our products.

Contact us
